New Switchcraft "Z" Series Power Plugs released
New Switchcraft "Z" Series Power Plugs released are available in a variety of sizes and compatible with standard DC power jacks. Available now from leading Switchcraft UK Distributor - CIE Electronics.
Switchcraft - leading manufacturer of professional and industrial cables & connectors - has released the latest in their range of jacks and plugs - the “Z” series power plugs.
The New and Improved Design
This new and improved design takes improvements from the original proven design to make it safer and more versatile.

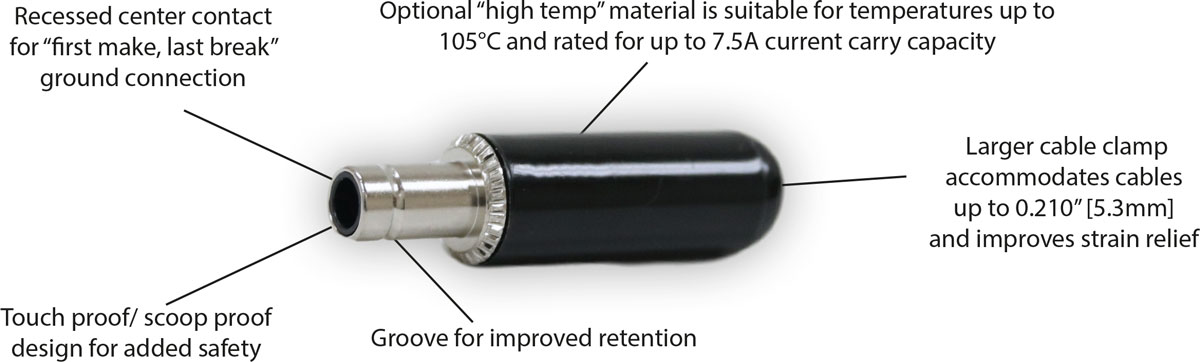

The “Z” series power plug provides a touch proof/scoop proof design which engages the ground connection first - this protects the user and the equipment better than a standard power plug.
Specifications
Lifecycles: 5,000 cycles min
Current: 5A (Standard),
7.5A (High-temp)
Voltage: 24 VDC
Cable Range: 3.2 mm - 5.3mm
Current Carry Only
Molded Cable Assembly Options Available
Switchcraft "Z" Series Order Codes
| PART NUMBER | DESCRIPTION |
|---|---|
| 760Z | DC Power Plug, Z Series, 2.5MM X 0.375 |
| 760KZ | DC Power Plug, Z Series, 2.5MM X .375, Locking |
| 761KZ | DC Power Plug, Z Series, 2.5MM X .475, Locking |
| 762Z | DC Power Plug, Z Series, 2.1MM X .375 |
| 762KZ | DC Power Plug, Z Series, 2.1MM X .375, Locking |
| 767KZ | DC Power Plug, Z Series, 2.1MM X .475, Locking |
| S760Z | DC Power Plug, Z Series, 2.0MM X .375 |
| S760KZ | DC Power Plug, Z Series, 2.0MM X .375, Locking |
| S761KZ | DC Power Plug, Z Series, 2.0MM X .475, Locking |
| 760HZ | DC Power Plug, Z Series, 2.5MM X 0.375, High Temp |
| 760KHZ | DC Power Plug, Z Series, 2.5MM X 0.375, Locking, High Temp |
| 761KHZ | DC Power Plug, Z Series, 2.5MM X 0.474, Locking, High Temp |
| S760HZ | DC Power Plug, Z Series, 2.0MM X 0.375, High Temp |
| S760KHZ | DC Power Plug, Z Series, 2.0MM X 0.375, Locking, High Temp |
| S761KHZ | DC Power Plug, Z Series, 2.0MM X 0.474, Locking, High Temp |
| 860Z | DC Power Plug, Z Series, 1.3MM X 0.375 |
Contact the CIE Electronics team for more information
CIE is the main UK distributor for the complete range of Switchcraft and Conxall professional connectors and cables. Please contact the team today for full details, product pricing or samples.
