New Switchcraft Insta-Click Sealed Connectors

17th August 2020

New Switchcraft Conxall Micro-Con-X and Mini-Con-X Insta-Click sealed connectors released with automatic positive connection and improved IP rating for harsh environment applications. Available now from leading Switchcraft UK Distributor - CIE Electronics.

Switchcraft - leading manufacturer of professional and industrial cables & connectors - has released the latest in their range of IP-rated, harsh environment connectors - the Micro-Con-X and Mini-Con-X Insta-Click Sealed Connectors.

Micro-Con-X and Mini-Con-X Insta-Click Sealed Connectors

Switchcraft's Micro-Con-X and Mini-Con-X range has set the industry standard for harsh environment and water resistant connectors -  and this latest addition to the line, the new Insta-Click range, adds several key improvements for even greater protection in wet and harsh environment applications.

These latest versions now feature an all-new automatic positive-lock latching system, as well as an improved water resistance rating of IP68 (when used with a molded cable assembly).
The use of a new high-PBT material also provides excellent UV resistance for outdoor user and lighting applications.

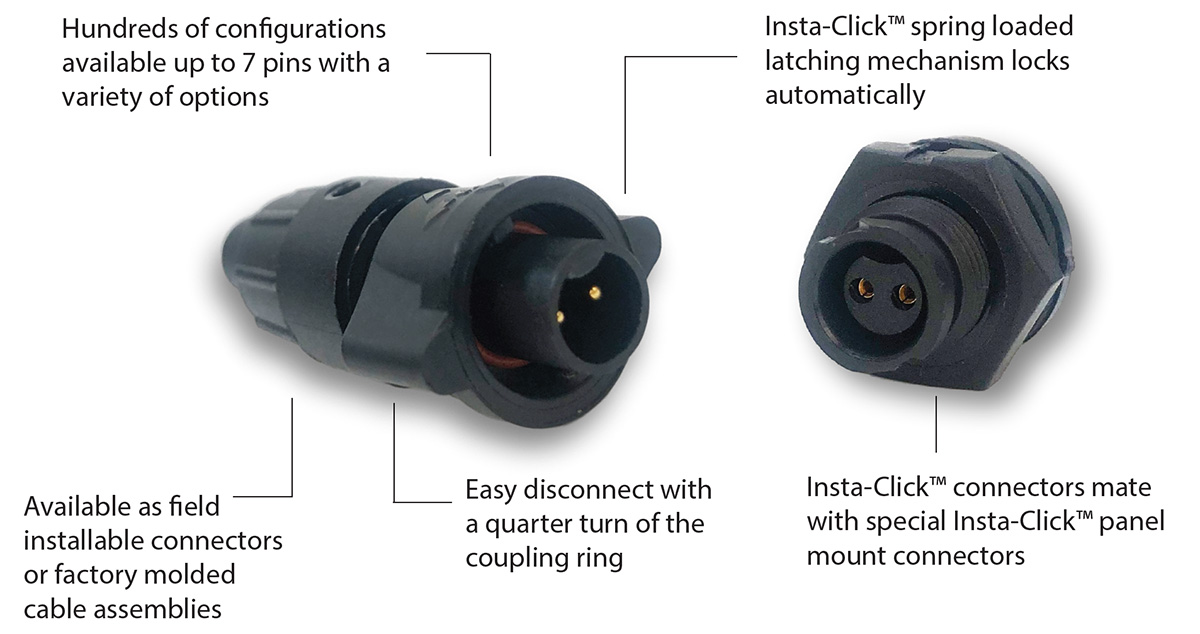

Micro-Con-X

Switchcraft Micro-Con-X Insta-Click

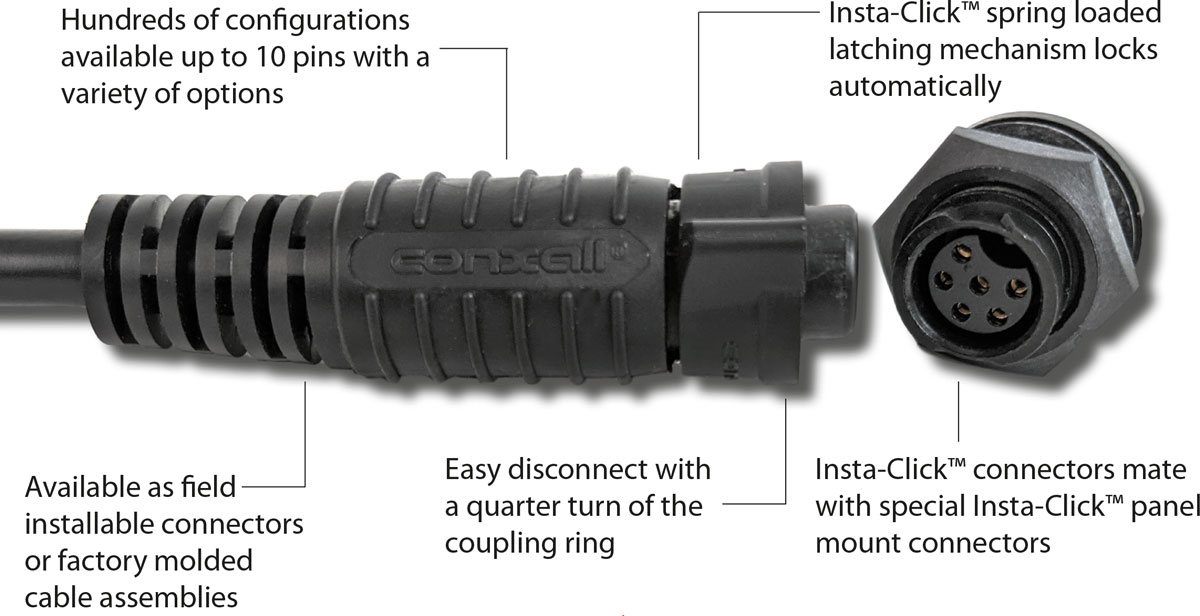

Mini-Con-X

Mini-Con-X

The Switchcraft Conxall Insta-Click range provides the ideal connectivity solution in a wide range of harsh and wet envionment applications including outdoors, marine, clean room, medical, food processing, automotive and data logging equipment.

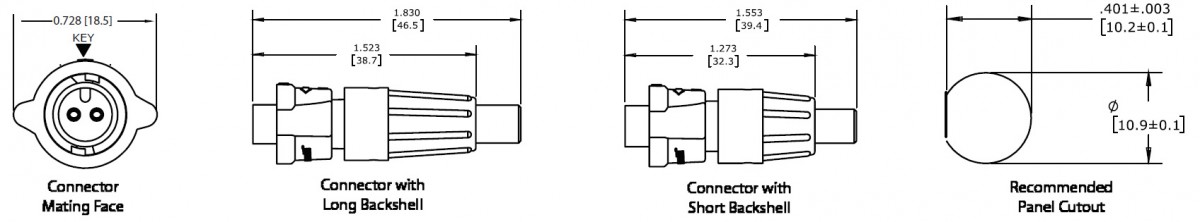

Micro-Con-X Insta-Click Sealed Connectors - DIMENSIONS

Micro-Con-X Insta-Click Dimensions

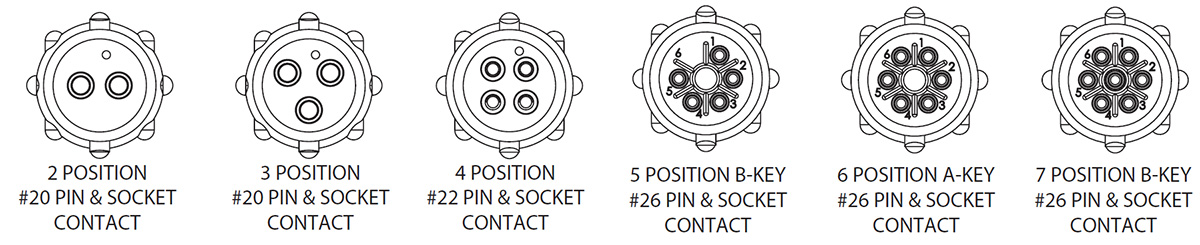

Micro-Con-X Insta-Click Sealed Connectors - CONTACT LAYOUTS

Micro-Con-X Insta-Click Contact Layouts

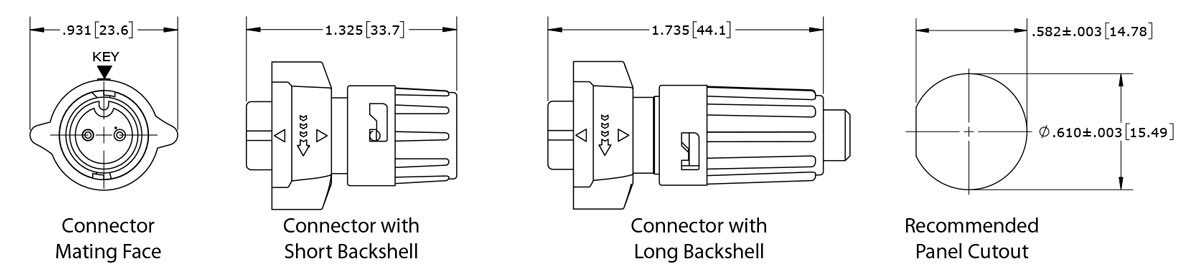

Mini-Con-X Insta-Click Sealed Connectors - DIMENSIONS

Mini-Con-X Insta-Click Dimensions

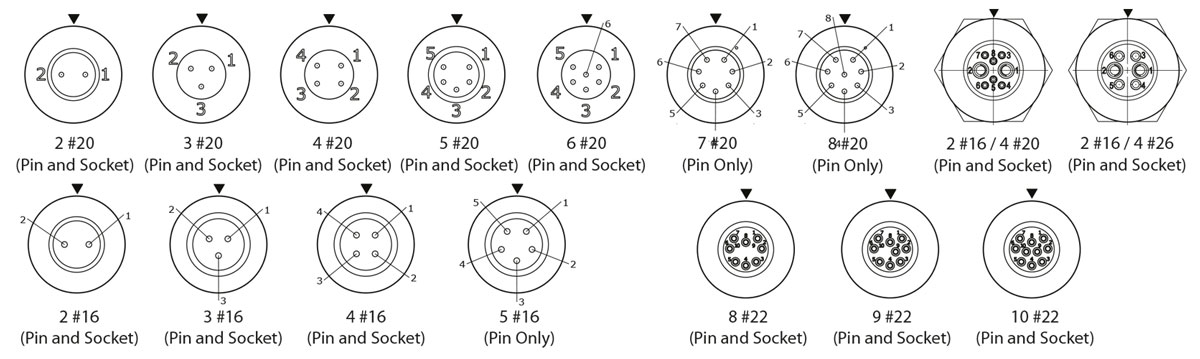

Mini-Con-X Insta-Click Sealed Connectors - CONTACT LAYOUTS

Mini-Con-X Insta-Click Contact Layouts

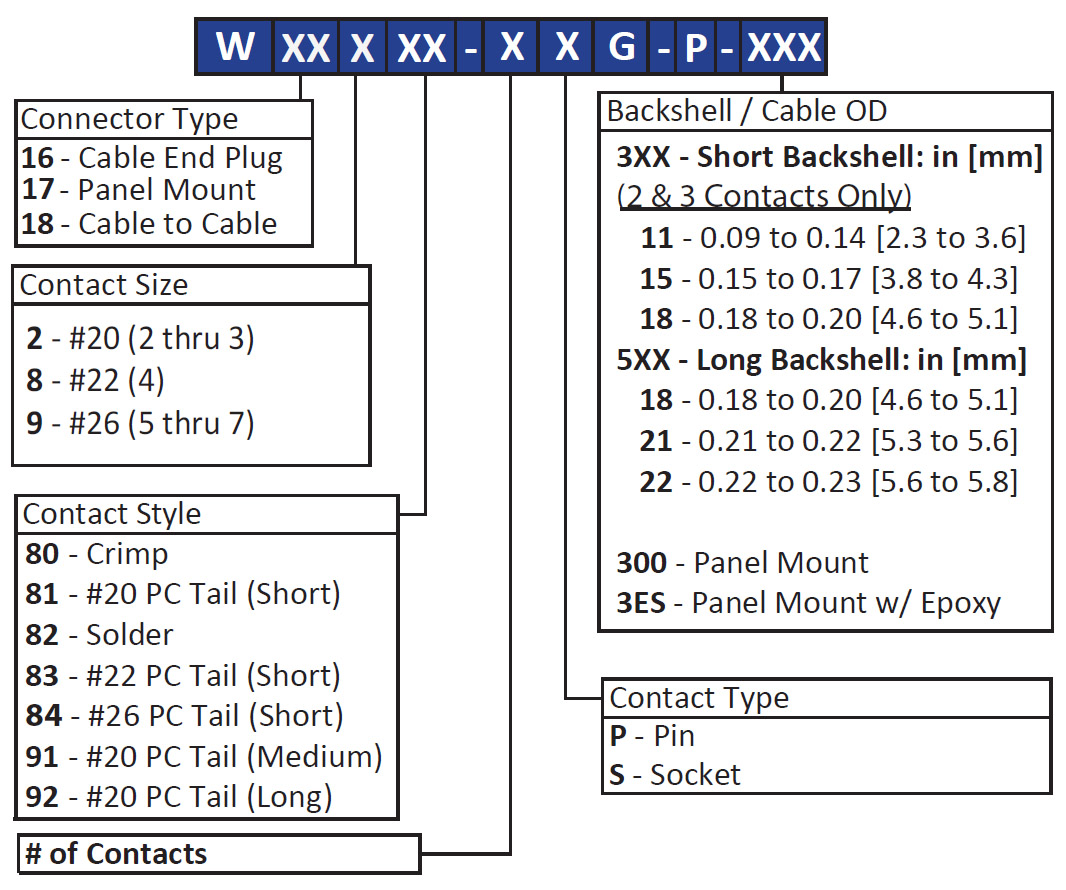

Ordering Codes for Switchcraft Micro-Con-X Insta-Click connectors

Ordering Codes for Switchcraft Micro-Con-X Insta-Click connectors

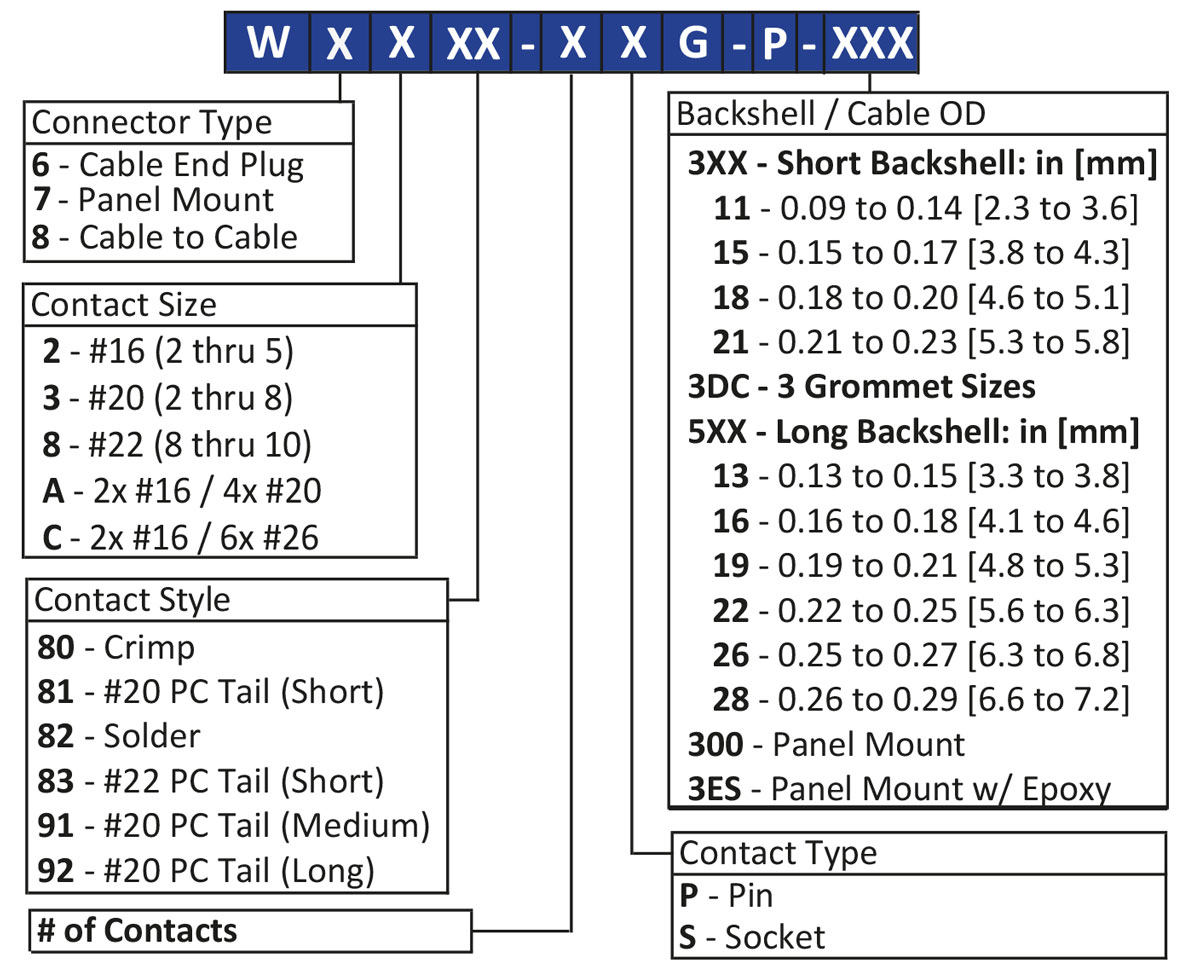

Ordering Codes for Switchcraft Mini-Con-X Insta-Click connectors

Ordering Codes for Switchcraft Mini-Con-X Insta-Click connectors


Contact the CIE Electronics team for more information

CIE is the main UK distributor for the complete range of Switchcraft and Conxall professional connectors and cables. Please contact the team today for full details, product pricing or samples.

Download the Switchcraft CG Series connector PDF
